Working Principle:

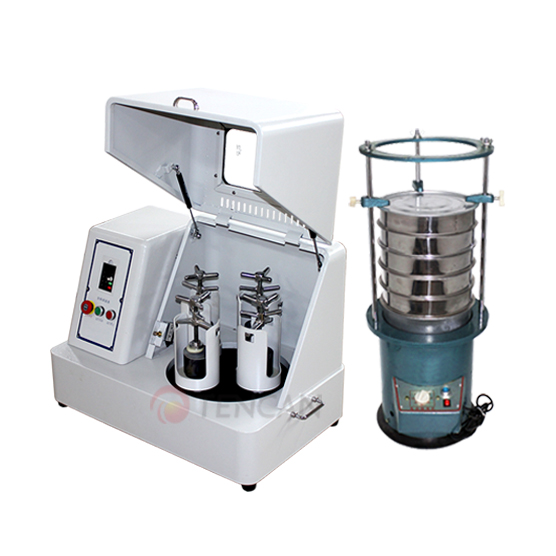

Soil Grinding machine and vibrating sieve machine are used for analyzing heavy metal of soil. The machine is equipped with four agate mill jars installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and soil sample inside the jars are impacted and sheared in high speed movement, and eventually achieving the purpose of crushing, grinding, mixing and dispersing.

Feature:

1.Materials can be ground into granularity you expect in high efficiency and high energy and the superfine granule reaches 100 nm.

2.Max grinding acceleration: 100G, the soonest time of grinding: 5 minutes

3.Vertical planetary ball mill meets all kinds of requirements such as wet and dry grinding, 4.vacuum or atmosphere grinding, cryogenic grinding, high temperature grinding, and so on.

5.Available and matched grinding jars and medias made of the following materials for your options: Stainless steel, alumina, zirconia, agate, silicon carbide, nylon, PTFE, PU, tungsten carbide, and etc.

Application Cases of Planetary Ball Mill:

Test Report of Grinding Granularity by Planetary Ball Mill:

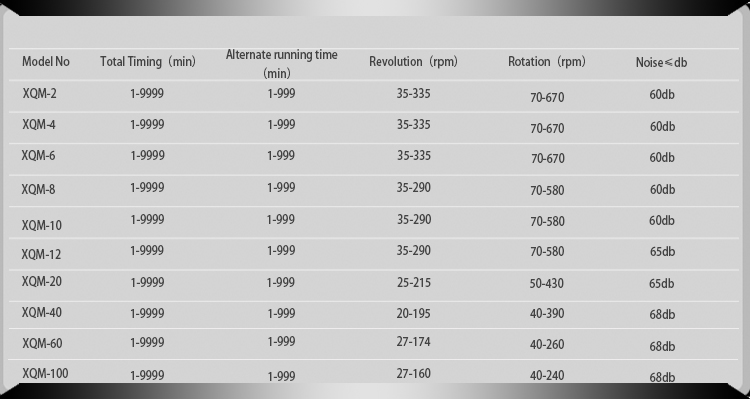

Application Parameters

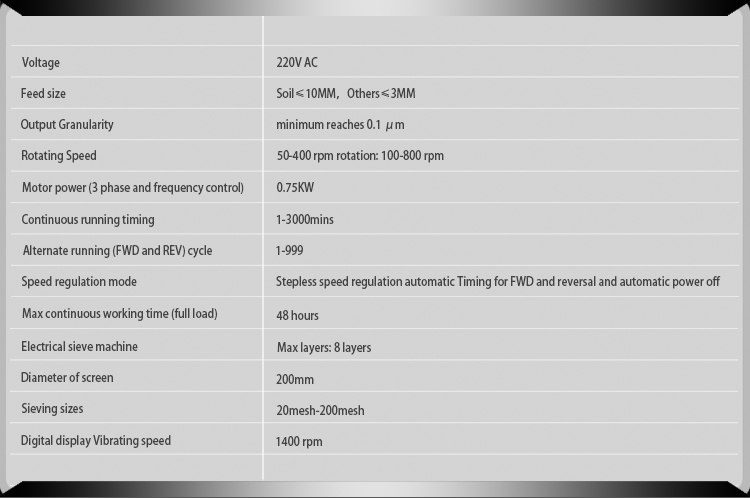

Technical Parameters(Soil Grinding Machine and Vibrating Sieve Machine)

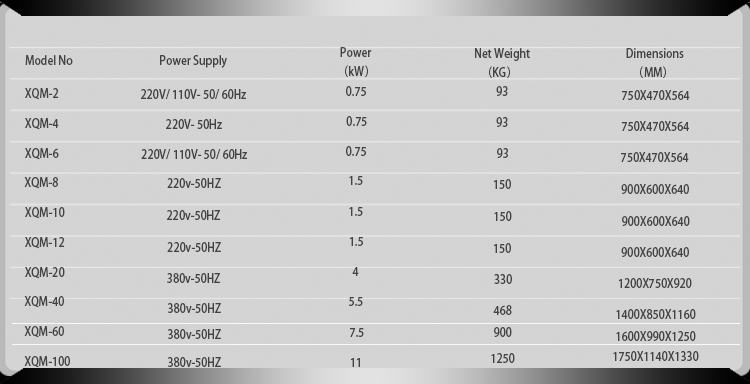

Specifications of  (Soil Grinding Machine and Vibrating Sieve Machine)

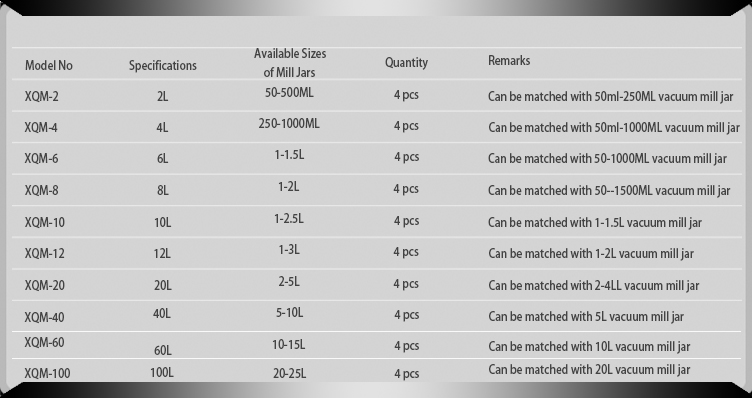

Available Sizes of Mill Jar for (Soil Grinding Machine and Vibrating Sieve Machine)

Mill Jars and Mill Balls:

We provide all kinds of mill pots in any matched size, which are made from following materials of agate, Alumina corundum ceramics, zirconia ceramics, silicon nitride ceramics, carborundum ceramics, stainless steel, high wear resistant steel, manganese steel, nylon, PU, cemented carbide, crystal glass, and etc.

1.Mill Jars:

Suggestions for Matching Solution About Mill Jars & Materials:

2.Mill Balls:

We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.

Suggestions for Matching Solution About Grinding Medium & Materials:

Suggestions for Matching Solution About Mill Jars & Mill balls:

3.Pictures of Accessories & Spare Parts:
